Hur får jag syntljud till mitt digitala Yamaha-piano CLP 545?

Recommended Posts

Hej, kul att ni ska börja lira tillsammans:-)

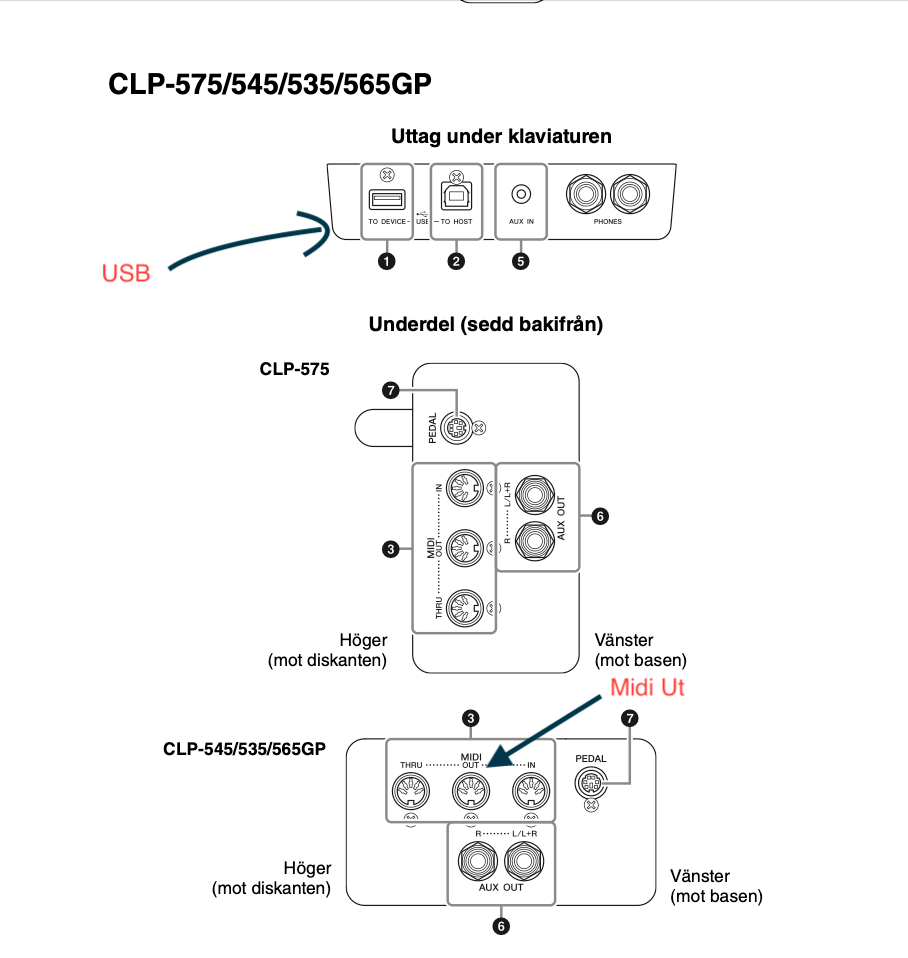

Ditt CLP-545 har ju Midi Out så ett alternativ är att använda en extern ljudmodul typ denna med General Midi-ljud (finns säkert många andra alternativ också, men externa ljudmoduler är inte så jättevanliga längre, speciellt inte i de lägre prisklasserna):


Kopplas med en midi-sladd ut från pianot in till Midi In på ljudmodulen och sedan behöver man koppla den externa ljudmodulen till en förstärkare/stereon med två ljudkablar för stereo-ljud.




Ett annat, men bökigare sätt, är att koppla pianot till en dator via USB-Midi-utgången (en vanlig USB-sladd), och spela upp ljud via t.ex. ett musikprogram.

Edited by Peter Roos
Link to post
Share on other sites
16 timmar sedan sa Fredrik Hollander:

Tack Peter, hur glr man annars när man har ett moderkryboard, hur får man ljuden?

Var så lite så, Fredrik.

Själv har jag mitt CME Z-Key 88 (som inte har några inbyggda ljud) kopplat med ett M-Audio 2x2 midiinterface  till datorn där jag har en del mjukvaruinstrument t.ex. M-Tron Pro, Addictive Keys, Sylenth m.fl. Det är ju praktiskt att ha allt i burken, men fördelarna med externa ljud som i ditt CLP eller en extern ljudmodul är ju att man kan öva och spela utan att ha datorn på jämt.

Om du ska spela tillsammans med andra, och vill ha sjysta syntljud, hade jag rekommenderat att köpa till en liten synt som komplement till pianot - då slipper man alla bökiga kopplingar. Själv gillar jag den här (och Rolands övriga produkter):


En sådan synt kan du också spela från ditt CLP-piano via en midi-sladd och den kan spela alla oktaver trots att det bara är 37 tangenter på synten (som visas i videon).


Här är några sjysta mini-syntar med retroljud från Yamaha också:






Edited by Peter Roos
Link to post
Share on other sites
